Lityum polimer pil hücresi

Lithium Polymer Battery Cell 802035 3.7V 500mAh 1.85wh Rechargeable Batteries For Learning Devices

Tüm Kategori

Yeniden şarj edilebilir pil şarj cihazı

RC Aksesuarları

Bizimle İletişim

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Şimdi iletişime geçin

Lithium Polymer Battery Cell 802035 3.7V 500mAh 1.85wh Rechargeable Batteries For Learning Devices

Marka Adı:	RESKY
Model Numarası:	LP802035
Adedi:	10 adet
fiyat:	pazarlık edilebilir
Paketleme Ayrıntıları:	Kağit kutulu Blister tepsi paketi
Ödeme Şartları:	Western Union, T/T

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Sertifika:

CE, RoHS, MSDS,Un38.3,IEC62133

Model No.:

LP802035

Elektrolit:

Li (Nicomn) O2

Şarj edilebilir:

Ödün verilebilir

Nominal kapasite:

500mAh

Şarj akımı:

Sürekli Boşaltma Akımı:

Maksimum Boşaltma Akımı:

Ağırlık:

100 adet

Garanti:

1 yıl

Yetenek temini:

50000pcs/gün

Vurgulamak:

802035 lithium polymer battery cell

3.7V rechargeable battery for learning devices

500mAh lithium polymer battery with warranty

Ürün Tanımı

Product Description

Lithium Polymer Battery Cell 802035 3.7V 500mAh 1.85wh Rechargeable Batteries For Learning Devices

NO.	Items	Specifications
1	batteries	3.7v 500mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	500mAh 0.2C Discharge
5	Charge current	Standard Charging:0.2C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref. )Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:35±0.5mm (not including tabs) Width:20±0.5mm Thickness:8±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥800times

Product features:

1. High security performance

2. Thin thickness, adjustable thickness

3. Lightweight

4. High energy density, compared to other types of lithium batteries, the same size capacity can be achieved

5. Low internal resistance and long cycle life

6. Flexible size available

7. Good discharge performance

Application areas:

Bluetooth earphones, smart wearables, GPS navigation devices, POS machines, power banks, learning devices, tablets, car navigation, MP3,MP4,MP5, Card insertion speaker, wireless mouse, Xiaomi display screen PSP built-in battery, Apple peripheral power supply, tablet computer, mobile DVD, laptop battery, wireless monitoring device, medical equipment, various instruments and meters, LED lamps, traffic signs, portable small appliances, various DIY instruments and meters, metal detectors, and other digital battery products.

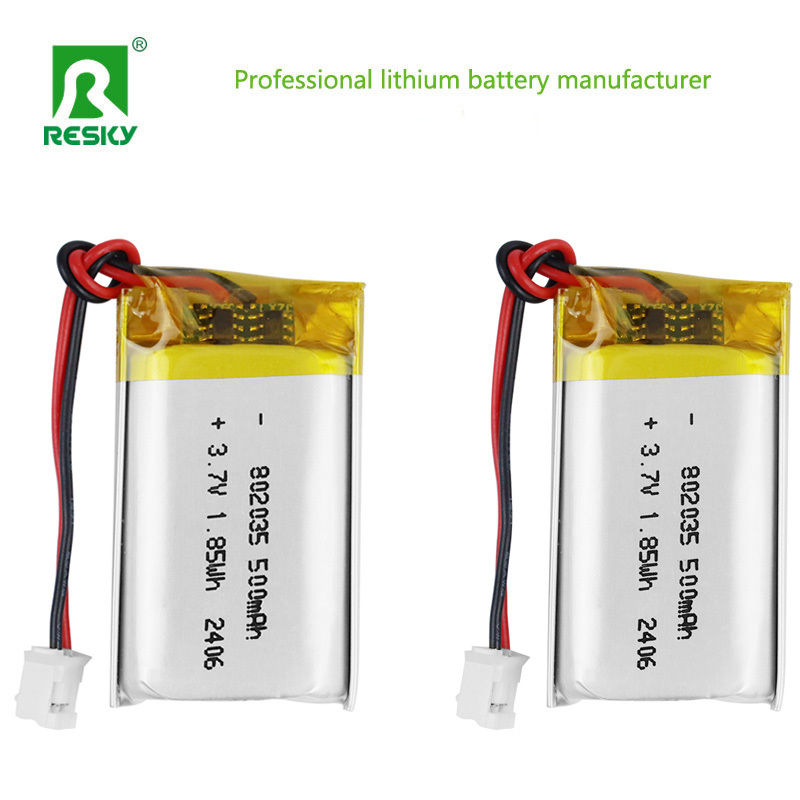

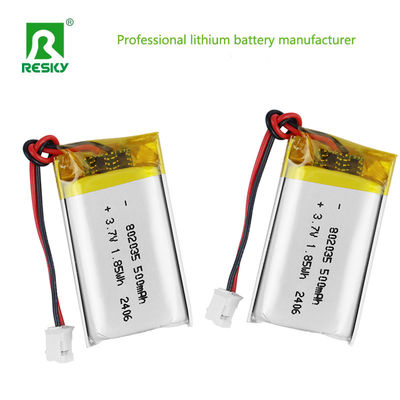

Product pictures:

Etiketler:

LiPO piller

Lityum Polimer Pil Paketi

Li-polimer piller

Ürün ayrıntıları

Evde > Ürünler >

Lityum polimer pil hücresi

Lithium Polymer Battery Cell 802035 3.7V 500mAh 1.85wh Rechargeable Batteries For Learning Devices

Tüm Kategori

Lityum polimer pil hücresi

RC Lityum Pil

Li-ion Pil Paketi

Lityum Polimer Pil Paketi

Sıcak Lityum Pil

Elektrikli Bisiklet Aküsü

RC denge şarj cihazı

Yeniden şarj edilebilir pil şarj cihazı

RC Aksesuarları

Lithium Polymer Battery Cell 802035 3.7V 500mAh 1.85wh Rechargeable Batteries For Learning Devices

Marka Adı:	RESKY
Model Numarası:	LP802035
Adedi:	10 adet
fiyat:	pazarlık edilebilir
Paketleme Ayrıntıları:	Kağit kutulu Blister tepsi paketi
Ödeme Şartları:	Western Union, T/T

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Marka adı:

RESKY

Sertifika:

CE, RoHS, MSDS,Un38.3,IEC62133

Model numarası:

LP802035

Model No.:

LP802035

Elektrolit:

Li (Nicomn) O2

Şarj edilebilir:

Ödün verilebilir

Nominal kapasite:

500mAh

Şarj akımı:

0.2C

Sürekli Boşaltma Akımı:

0.5C

Maksimum Boşaltma Akımı:

Ağırlık:

Moq:

100 adet

Garanti:

1 yıl

Min sipariş miktarı:

10 adet

Fiyat:

pazarlık edilebilir

Ambalaj bilgileri:

Kağit kutulu Blister tepsi paketi

Teslim süresi:

7-10 gün

Ödeme koşulları:

Western Union, T/T

Yetenek temini:

50000pcs/gün

Vurgulamak:

802035 lithium polymer battery cell

3.7V rechargeable battery for learning devices

500mAh lithium polymer battery with warranty

Ürün Tanımı

Product Description

Lithium Polymer Battery Cell 802035 3.7V 500mAh 1.85wh Rechargeable Batteries For Learning Devices

NO.	Items	Specifications
1	batteries	3.7v 500mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	500mAh 0.2C Discharge
5	Charge current	Standard Charging:0.2C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref. )Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:35±0.5mm (not including tabs) Width:20±0.5mm Thickness:8±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥800times

Product features:

1. High security performance

2. Thin thickness, adjustable thickness

3. Lightweight

4. High energy density, compared to other types of lithium batteries, the same size capacity can be achieved

5. Low internal resistance and long cycle life

6. Flexible size available

7. Good discharge performance

Application areas:

Product pictures:

Etiketler:
