Lityum polimer pil hücresi

Lithium Ion Battery Cell LP105060 3.7V 3500mAh 12.95wh Solar Rechargeable Lip Battery Pack

Tüm Kategori

Yeniden şarj edilebilir pil şarj cihazı

RC Aksesuarları

Bizimle İletişim

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Şimdi iletişime geçin

Lithium Ion Battery Cell LP105060 3.7V 3500mAh 12.95wh Solar Rechargeable Lip Battery Pack

Marka Adı:	RESKY
Model Numarası:	LP105060
Adedi:	10 adet
fiyat:	pazarlık edilebilir
Paketleme Ayrıntıları:	Kağıt kutusu
Ödeme Şartları:	Western Union, T/T

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Sertifika:

CE, RoHS, MSDS, Un38.3, Reach, IEC62133, ect

Nominal kapasite:

3500mAh

Şarj akımı:

Sürekli Boşaltma Akımı:

Maksimum Boşaltma Akımı:

Ağırlık:

Bisiklet hayatı:

500ccles

Bağlayıcı:

Sadece Molex...

OEM Hizmeti:

Şartname:

10*50*60mm

GTİP Kodu:

8507600090

Yetenek temini:

50000pcs/gün

Vurgulamak:

3.7V lithium ion battery cell

3500mAh solar rechargeable battery

LP105060 lip battery pack

Ürün Tanımı

Lithium Ion Battery Cell LP105060 3.7V 3500mAh 12.95wh Solar Rechargeable Lip Battery Pack

High-performance lithium polymer battery with 3500mAh capacity and 3.7V nominal voltage, designed for solar rechargeable applications and small electronic devices.

Product Specifications

NO.	Items	Specifications
1	Batteries	3.7V 3500mAh Lipo Battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	3500mAh @ 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
7	Charging time	Standard: 2.75 hours (Ref.) Rapid: 2 hours (Ref.)
8	Max. charge current	1.0C
9	Max. discharge current	1C
10	Discharge cut-off voltage	2.5V±0.25V (0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C ~ +45°C
13	Dimension	Length: 60±2mm (excl. tabs) Width: 50±0.5mm Thickness: 10±0.2mm
14	Drop Test	1m drop onto concrete twice - No fire, no leakage
15	Cycle time	≥500 cycles

Key Advantages

Strong Capacity and Voltage Adaptability: 3500mAh capacity meets battery life requirements for small devices. Universal 3.7V voltage ensures wide compatibility without additional power modules.
Flexible Form Factor: 1050x60mm thin, flat design with soft-pack enclosure adapts to irregular device spaces and structural designs.
Outstanding Safety and Stability: Soft-pack enclosure reduces overcharging/overheating risks with ≥500 charge-discharge cycles and low self-discharge rate.

Main Applications

Smart Wearable Devices: Smart bracelets and watches - thin design fits perfectly with 3500mAh capacity for long battery life.
Digital Audio-Visual Devices: Bluetooth speakers, MP3/MP4 players - 3.7V universal voltage with several hours of use.
Portable Medical Devices: Blood glucose meters, pulse oximeters - high safety and stability for medical applications.
Mobile Accessories: Power banks, wireless chargers - soft-pack design fits flexible internal spaces.
Smart Home Devices: Smart locks, sensors, cameras - stable battery life with flexible installation.

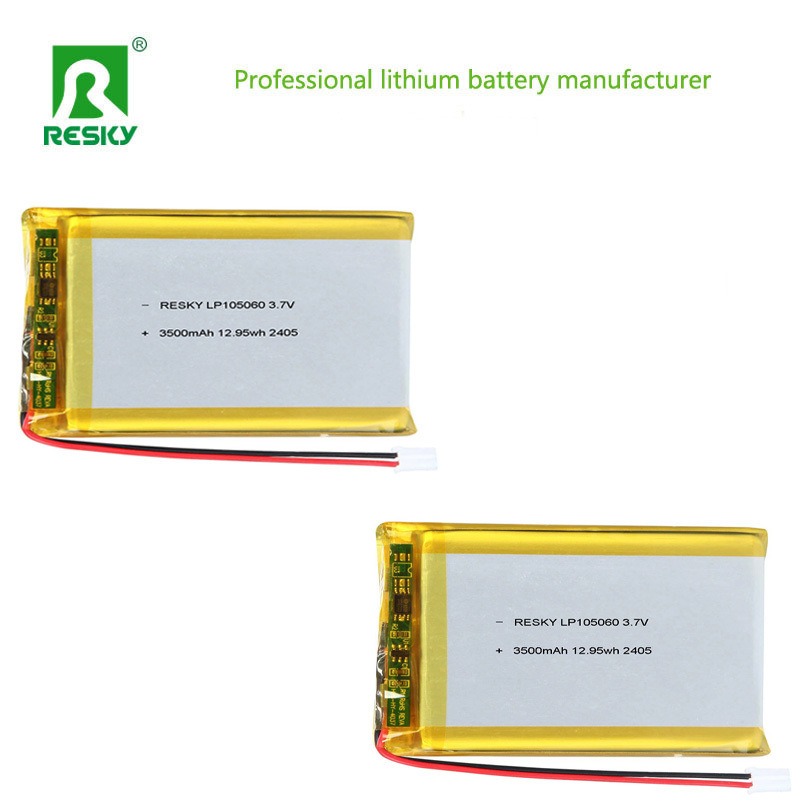

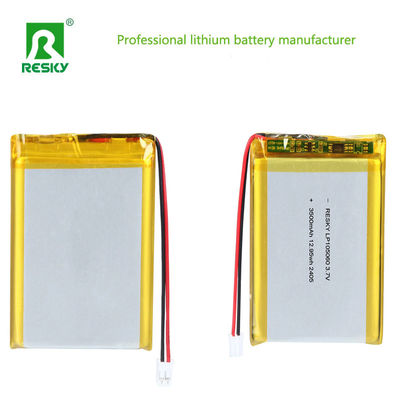

Product Images

Etiketler:

Ürün ayrıntıları

Evde > Ürünler >

Lityum polimer pil hücresi

Lithium Ion Battery Cell LP105060 3.7V 3500mAh 12.95wh Solar Rechargeable Lip Battery Pack

Tüm Kategori

Lithium Ion Battery Cell LP105060 3.7V 3500mAh 12.95wh Solar Rechargeable Lip Battery Pack

Marka Adı:	RESKY
Model Numarası:	LP105060
Adedi:	10 adet
fiyat:	pazarlık edilebilir
Paketleme Ayrıntıları:	Kağıt kutusu
Ödeme Şartları:	Western Union, T/T

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

ÇİN

Marka adı:

RESKY

Sertifika:

CE, RoHS, MSDS, Un38.3, Reach, IEC62133, ect

Model numarası:

LP105060

Nominal kapasite:

3500mAh

Şarj akımı:

0.2C

Sürekli Boşaltma Akımı:

0.5C

Maksimum Boşaltma Akımı:

Ağırlık:

30g

Bisiklet hayatı:

500ccles

Bağlayıcı:

Sadece Molex...

OEM Hizmeti:

Evet

Şartname:

10*50*60mm

GTİP Kodu:

8507600090

Min sipariş miktarı:

10 adet

Fiyat:

pazarlık edilebilir

Ambalaj bilgileri:

Kağıt kutusu

Teslim süresi:

7-10 gün

Ödeme koşulları:

Western Union, T/T

Yetenek temini:

50000pcs/gün

Vurgulamak:

3.7V lithium ion battery cell

3500mAh solar rechargeable battery

LP105060 lip battery pack

Ürün Tanımı

Lithium Ion Battery Cell LP105060 3.7V 3500mAh 12.95wh Solar Rechargeable Lip Battery Pack

High-performance lithium polymer battery with 3500mAh capacity and 3.7V nominal voltage, designed for solar rechargeable applications and small electronic devices.

Product Specifications

NO.	Items	Specifications
1	Batteries	3.7V 3500mAh Lipo Battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	3500mAh @ 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
7	Charging time	Standard: 2.75 hours (Ref.) Rapid: 2 hours (Ref.)
8	Max. charge current	1.0C
9	Max. discharge current	1C
10	Discharge cut-off voltage	2.5V±0.25V (0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C ~ +45°C
13	Dimension	Length: 60±2mm (excl. tabs) Width: 50±0.5mm Thickness: 10±0.2mm
14	Drop Test	1m drop onto concrete twice - No fire, no leakage
15	Cycle time	≥500 cycles

Key Advantages

Strong Capacity and Voltage Adaptability: 3500mAh capacity meets battery life requirements for small devices. Universal 3.7V voltage ensures wide compatibility without additional power modules.
Flexible Form Factor: 1050x60mm thin, flat design with soft-pack enclosure adapts to irregular device spaces and structural designs.
Outstanding Safety and Stability: Soft-pack enclosure reduces overcharging/overheating risks with ≥500 charge-discharge cycles and low self-discharge rate.

Main Applications

Smart Wearable Devices: Smart bracelets and watches - thin design fits perfectly with 3500mAh capacity for long battery life.
Digital Audio-Visual Devices: Bluetooth speakers, MP3/MP4 players - 3.7V universal voltage with several hours of use.
Portable Medical Devices: Blood glucose meters, pulse oximeters - high safety and stability for medical applications.
Mobile Accessories: Power banks, wireless chargers - soft-pack design fits flexible internal spaces.
Smart Home Devices: Smart locks, sensors, cameras - stable battery life with flexible installation.
