Rechargeable Lithium Polymer Battery Cell 501535 240mAh 3.7v Solar Li-ion Lipo Batteries

Marka Adı:	RESKY
Model Numarası:	LP501535
Adedi:	100 adet
fiyat:	pazarlık edilebilir
Paketleme Ayrıntıları:	Kağıt kutusu
Ödeme Şartları:	T/T, Western Union

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Sertifika:

MSDS, Un38.3

Model NO.:

LP501535

Kapasite:

240mAh

Adedi:

100 adet

Elektrolit:

Li (Nicomn) O2

Döngü Ömrü:

500ccles

Garanti:

12 aylık

Nakliye:

UPS, DHL, FedEx, TNT, hava ile, deniz, özel çizgi

Kurşun zamanı:

5-7 iş günü içinde

Bağlayıcı:

Sadece Molex...

Şartname:

5*15*35mm

Yetenek temini:

50000 adet/gün

Vurgulamak:

Rechargeable Lithium Polymer Battery 240mAh

501535 Li-ion Battery 3.7v

Solar Lipo Battery Cell

Ürün Tanımı

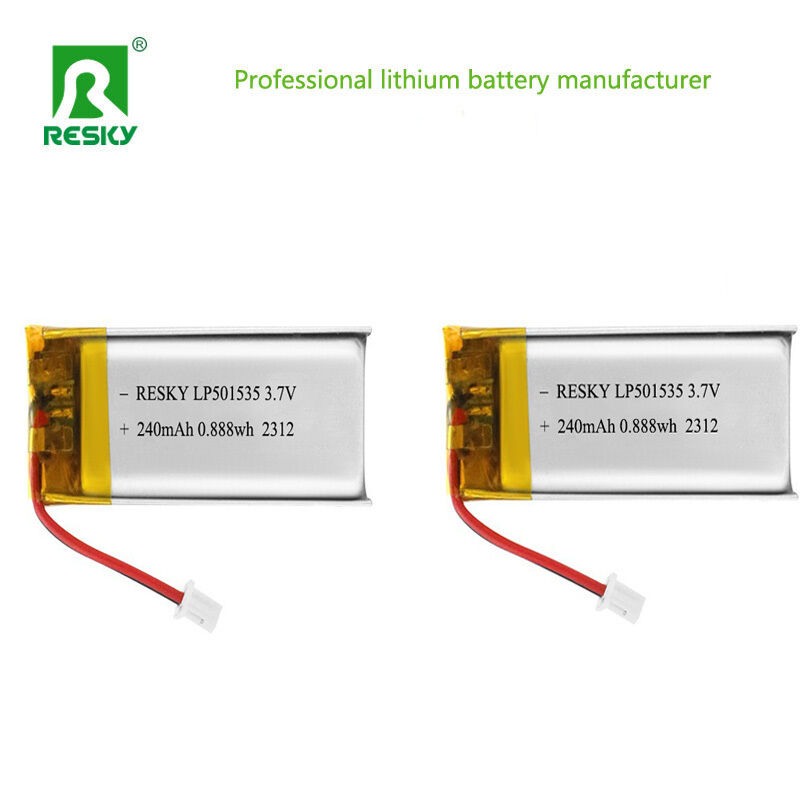

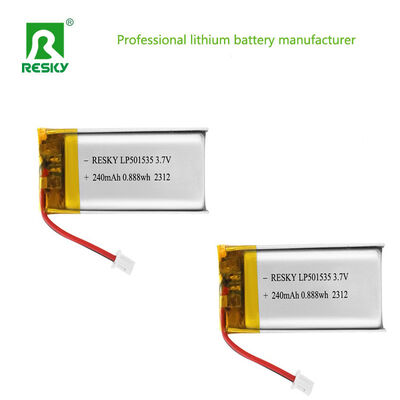

Rechargeable Lithium Polymer Battery Cell 501535 240mAh 3.7V

High-performance rechargeable lithium polymer battery cell with compact dimensions (35×15×5mm) and reliable power delivery for various electronic applications.

Technical Specifications

Specification	Details
Battery Type	3.7V 240mAh LiPo Battery
Charge Voltage	4.2V
Nominal Voltage	3.7V
Nominal Capacity	240mAh @ 0.2C Discharge
Charge Current	Standard: 0.2C Rapid: 1.0C
Standard Charging Method	0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
Charging Time	Standard: 2.75 hours (Ref.) Rapid: 2 hours (Ref.)
Max. Charge Current	0.5C
Max. Discharge Current	1.0C
Discharge Cut-off Voltage	2.5V±0.25V (0.2C)
Operating Temperature	Charging: 0°C ~ 45°C Discharging: 0°C ~ 45°C
Storage Temperature	-10°C ~ +45°C
Dimensions	Length: 35±0.5mm Width: 15±0.5mm Thickness: 5±0.2mm
Drop Test	Dropped from 1m height twice onto concrete - no fire, no leakage
Cycle Life	≥500 cycles

Key Features

Ternary polymer technology with soft-pack cell design
Nickel-cobalt-manganese ternary positive electrode material
High energy density and stable electrochemical performance
Compact size optimized for space-constrained devices

Performance Advantages

High energy density for greater capacity in same size
Low internal resistance for efficient charge/discharge
Long cycle life with excellent durability
Safety certifications: UN38.3, MSDS compliant
Ideal for export devices including GPS trackers

Applications

Consumer Electronics: Bluetooth headsets, smart bracelets, voice recorders, electric toothbrushes
Professional Equipment: Dog trainers, navigation devices, radio frequency ionization devices, facial cleansing devices
Industrial & Measuring Instruments: Electronic receivers, reading pens, scanners, and other devices requiring stable power supply

Product Images
